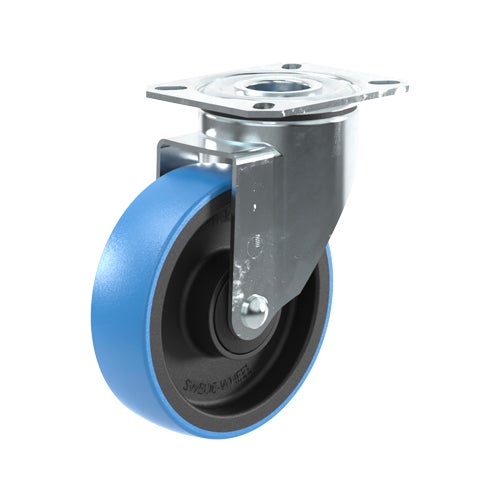

sketch Braked castor 125 mm, TPU-tyre

Braked castor 125 mm, TPU-tyre

Article number:
5312660433ds
PDF Sheet

Swivel bracket. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Wheel axle with nut. Wheel with blue TPU-tyre. Hub made of black Nylon/PA6 with threadguards. Ball bearing.

For price information, please log in.

Specifications

Diameter 125 mm
Totalt height 157 mm
Load Capacity (dynamic) 200 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 125 mm
Totalt height 157 mm
Load Capacity (dynamic) 200 kg
Fitting Top plate
Material Tread Polyurethane
Bearing Ball bearing
Plate Size 105x85 mm
CC Distance 80x60 mm
Thread hardness (Shore°) 98° Shore A
Width of tread 36 mm
Material Hub Nylon PA6
Top Hole 9x15 mm
Fork Width 46 mm
Dyn. Load Capacity (4km/) 200 kg
Color Tread Blue
Teststandard EN 12532
Offset 41 mm
Material Thickness Bracket 2.5 mm
Materialthickplate 3 mm
Temperature Range -30°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
