sketch Gravity box conveyor Plastic roller 3000x500 mm c/c 79 mm

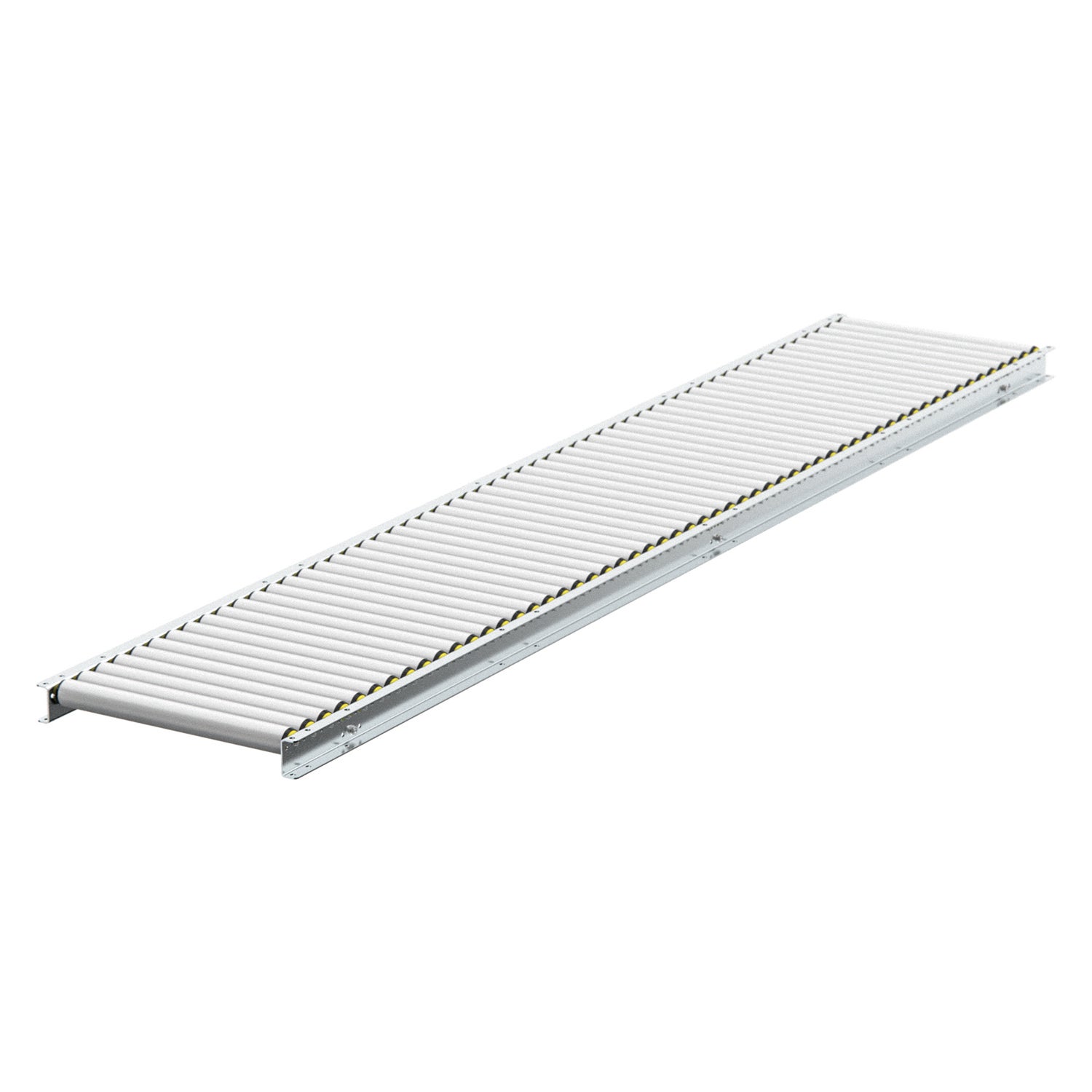

Gravity box conveyor Plastic roller 3000x500 mm c/c 79 mm

Article number:
sb3050050vf-38
PDF Sheet

Gravity conveyor suitable to handle lightweight unit loads as cartons, trays, palettes and parcels. Side profiles and plastic roller with spring loaded axel Ø8x11 mm

For price information, please log in.

Specifications

Length 3000 mm
Width of roller 500 mm
Length Roller 500 mm
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Length 3000 mm
Width of roller 500 mm
Length Roller 500 mm
Diameter 50 mm
Totalt height 75 mm
Material Tread Plastic roller
CC Distance 79 mm
Total width 560 mm
Load Capacity W. Leg c/c 1m 210 kg
Load Capacity W. Leg c/c 1,5m 200 kg
Load Capacity W. Leg c/c 3m 100 kg
Product Weight 36.08 kg
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
