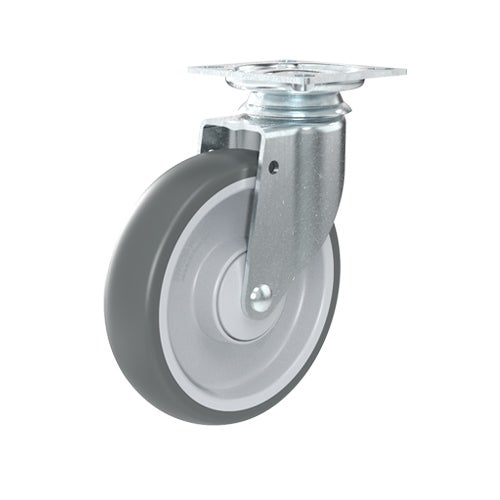

Swivel castor 125 mm, grey TPE-tyre

Article number:
4312670331gg
PDF Sheet

Housing made of zinc-chromatized pressed steel with double ball race swivel head with mounted plate, riveted wheel axle. Wheel with ball bearing and TPE tyre RAL 7012, hub in grey PP.

For price information, please log in.

Specifications

Diameter 125 mm
Totalt height 158 mm
Load Capacity (dynamic) 70 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 125 mm
Totalt height 158 mm
Load Capacity (dynamic) 70 kg
Fitting Top plate
Material Tread TPE
Bearing Ball bearing

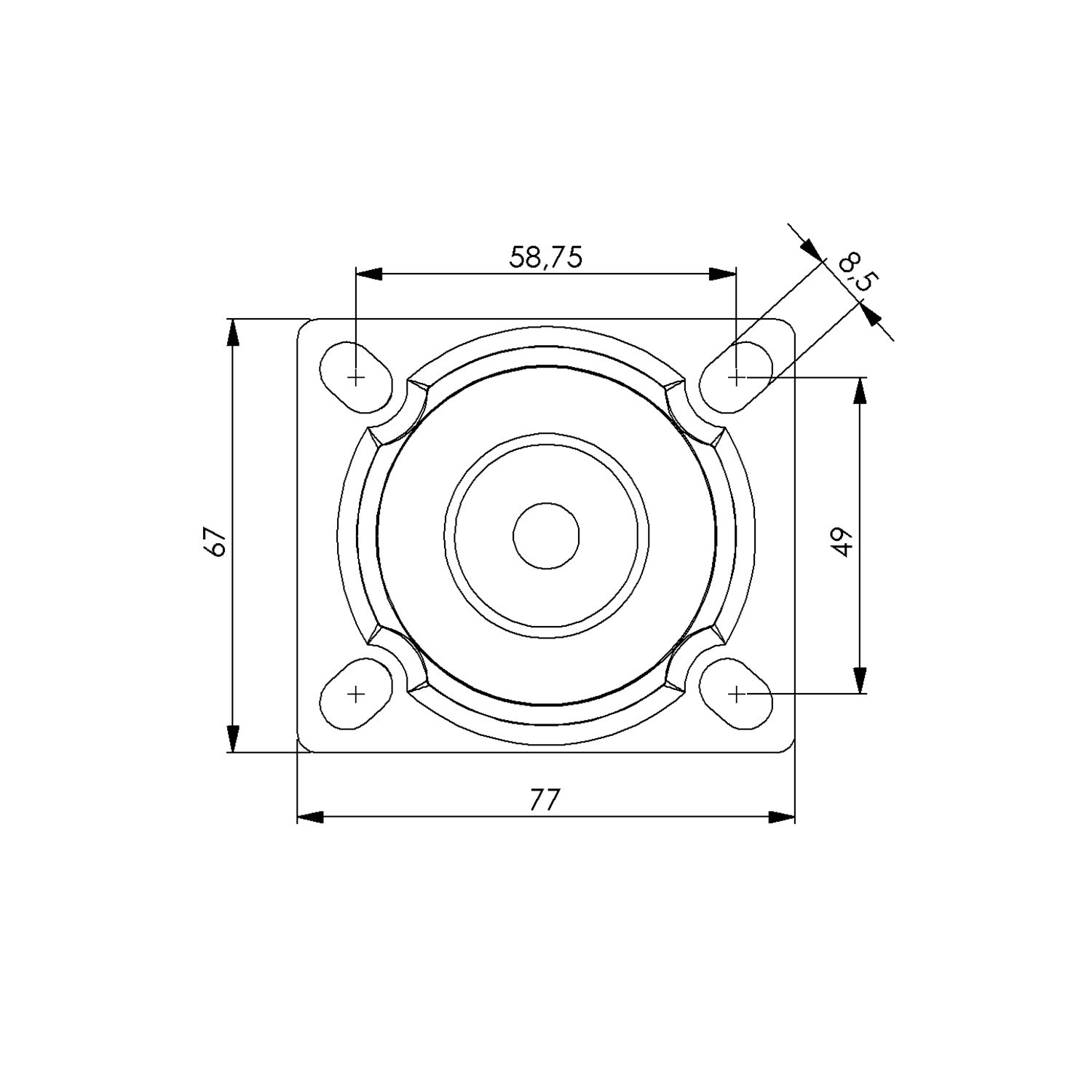

Plate Size 77x67 mm
CC Distance 59x49 mm
Thread hardness (Shore°) 85° Shore A
Width of tread 32 mm
Material Hub Polypropylen (pp)
Top Hole 12x8,5 mm
Color Tread Grey
Offset 41 mm
Material Thickness Bracket 2.5 mm
Materialthickplate 2.5 mm
Swivel radius 115 mm
Temperature Range -20°C to +50°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
Extended specifications

Enter your details to download 3D files.

Drawing not available.

Detailed stock balance information is only available for logged in users.

Only available as a logged in user.

Information

Institutional castors are our absolute flagship. We offer a very wide standard range with lots of mounting details. For example, you can mount our institutional castors with threaded bolt hole center just with a screw, saving a lot of time. In addition, we offer several different well designed institutional castor ranges.

The standard plain bearing institutional castors come in a variety of version. You can for example get it in our green sustainable version, or in our softer 50° Shore A version.
