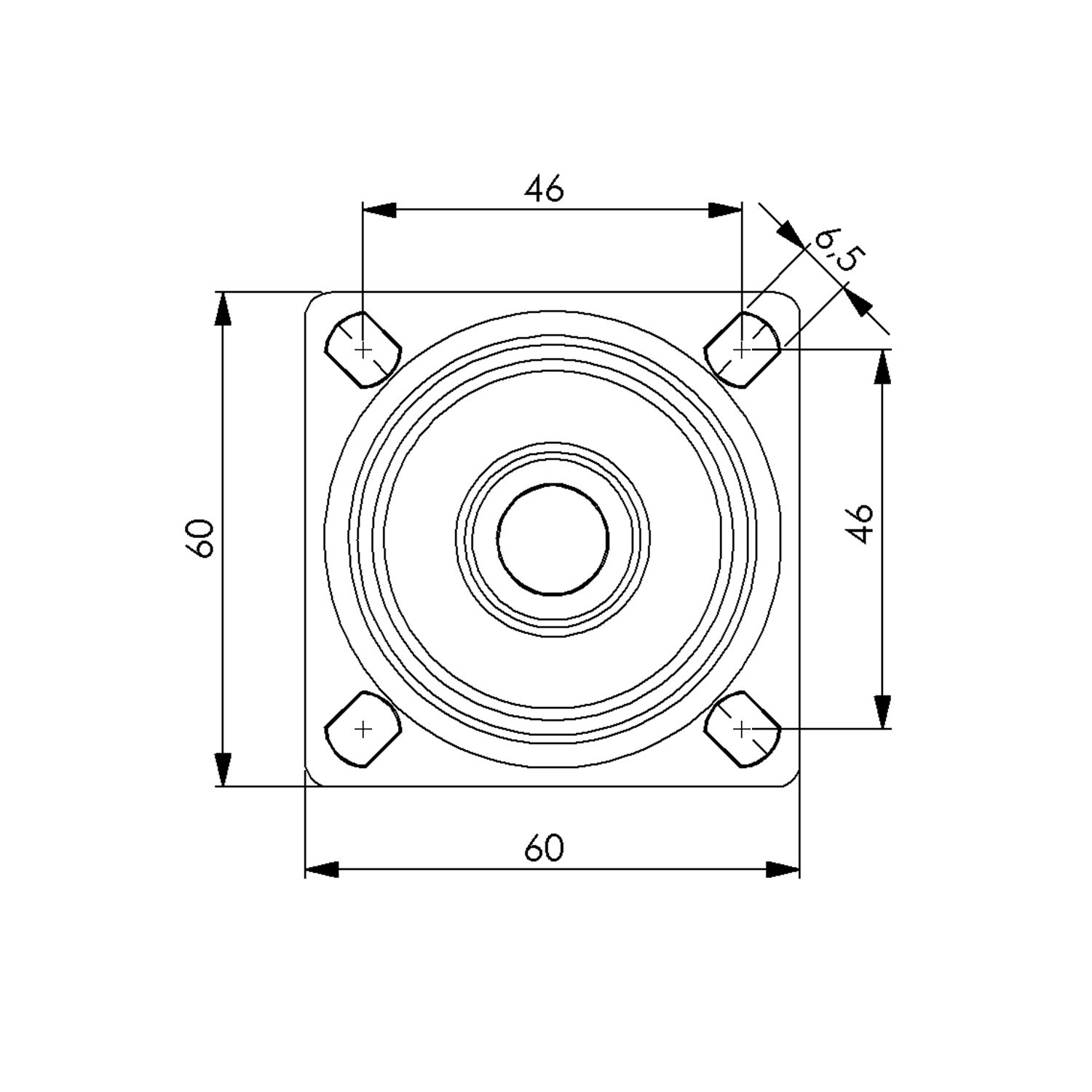

  • sketch Swivel castor 125 mm, TPE-tyre 2

Swivel castor 125 mm, TPE-tyre

Article number:
4312650331sss
PDF Sheet

Swivel bracket. Made of black pressed sheet metal with double ball race swivel. Top plate fitting. Riveted wheel axle. Wheel with black TPE-tyre. Hub made of black PP with threadguards. Ball bearing.

For price information, please log in.

Specifications

Diameter 125
Totalt height 151
Load Capacity (dynamic) 70
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 125
Totalt height 151
Load Capacity (dynamic) 70
Fitting Top plate
Material Tread TPE
Bearing Ball bearing
Plate Size 60x60
CC Distance 46x46
Thread hardness (Shore°) 85° Shore A
Width of tread 32
Material Hub Polypropylen (pp)
Top Hole 8,5x6,5
Color Tread Grey
Teststandard EN 12530
Offset 41
Material Thickness Bracket 2.5
Materialthickplate 2
Swivel radius 103.5
Temperature Range -20°C to +50°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
Extended specifications

Enter your details to download 3D files.

Drawing not available.

Detailed stock balance information is only available for logged in users.

Only available as a logged in user.

Related products - Swivel castor 125 mm, TPE-tyre



Information

Institutional castors are our absolute flagship. We offer a very wide standard range with lots of mounting details. For example, you can mount our institutional castors with threaded bolt hole center just with a screw, saving a lot of time. In addition, we offer several different well designed institutional castor ranges.

The standard plain bearing institutional castors come in a variety of version. You can for example get it in our green sustainable version, or in our softer 50° Shore A version.
