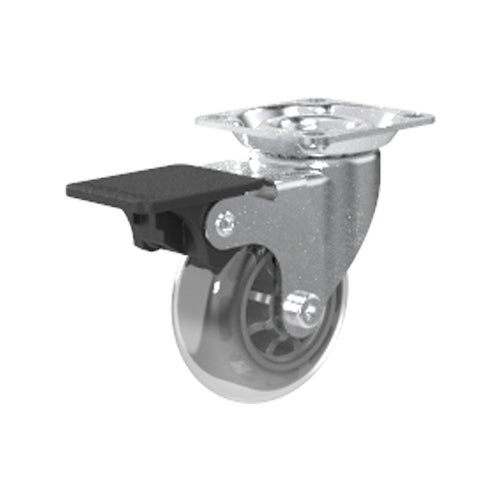

sketch Braked castor 50 mm, TPU-tyre

Braked castor 50 mm, TPU-tyre

Article number:
4005626402tge
PDF Sheet

Swivel bracket with wheel brake. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Riveted wheel axle. Inline wheel with transparent TPU-tyre. Hub made of grey polycarbonate. Plain bearing.

For price information, please log in.

Specifications

Diameter 50
Totalt height 64
Load Capacity (dynamic) 40
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 50
Totalt height 64
Load Capacity (dynamic) 40
Fitting Top plate
Material Tread Polyurethane
Bearing Rivet
Plate Size 42x42
CC Distance 32x32
Thread hardness (Shore°) 98° Shore A
Brake Wheel brake
Width of tread 20
Material Hub Polycarbonate (PC)
Top Hole 4.8
Color Tread Transparent
Teststandard EN 12530
Offset 17.5
Material Thickness Bracket 1.5
Materialthickplate 1.5
Swivel radius 65
Temperature Range -20°C to +50°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
Extended specifications

Enter your details to download 3D files.

Drawing not available.

Detailed stock balance information is only available for logged in users.

Only available as a logged in user.

Related products - Braked castor 50 mm, TPU-tyre



Information

Institutional castors are our absolute flagship. We offer a very wide standard range with lots of mounting details. For example, you can mount our institutional castors with threaded bolt hole center just with a screw, saving a lot of time. In addition, we offer several different well designed institutional castor ranges.

The standard plain bearing institutional castors come in a variety of version. You can for example get it in our green sustainable version, or in our softer 50° Shore A version.
