sketch Wheel 75 mm, cast iron-wheel

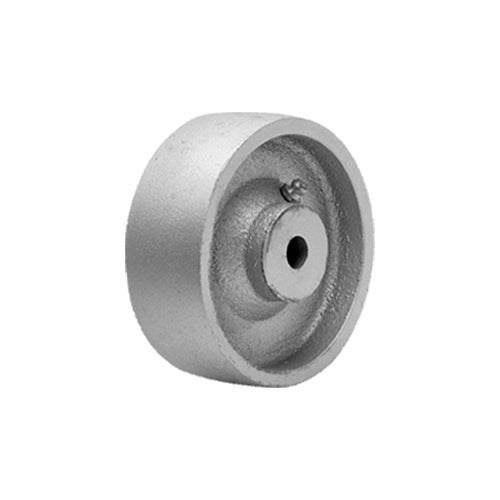

Wheel 75 mm, cast iron-wheel

Article number:
3607534120n-fe
PDF Sheet

Wheel made of cast iron. Plain bearing.

For price information, please log in.

Specifications

Diameter 75 mm
Load Capacity (dynamic) 200 kg
Material Tread Cast Iron
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 75 mm
Load Capacity (dynamic) 200 kg
Material Tread Cast Iron
Bearing Plain bearing
Width of tread 34 mm
Hub Width 45 mm
Hub Hole Diameter 12 mm
Material Hub Cast Iron
Dyn. Load Capacity (4km/) 200 kg
Product Weight 0.6 kg
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
