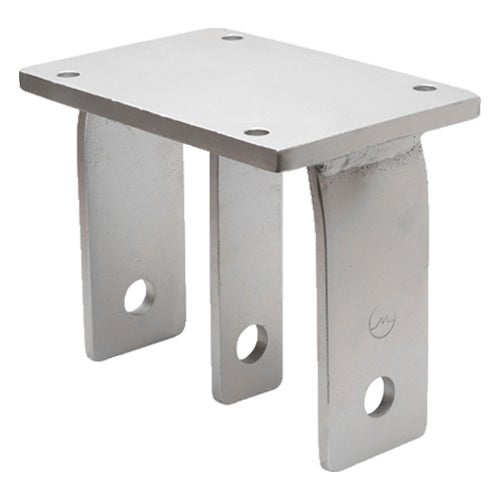

sketch Fixed bracket twin wheel 400 mm

Fixed bracket twin wheel 400 mm

Article number:
6z4069
PDF Sheet

Fixed bracket made of zinc-chromatized welded steel for twin wheel. Top plate fitting.

For price information, please log in.

Specifications

Diameter 400 mm
Totalt height 495 mm
Load Capacity (dynamic) 7500 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 400 mm
Totalt height 495 mm
Load Capacity (dynamic) 7500 kg
Fitting Top plate
Plate Size 295x200 mm
CC Distance 210x160 mm
Hub Hole Diameter 30 mm
Top Hole 18 mm
Fork Width 125 mm
Material Thickness Bracket 12 mm
Materialthickplate 16 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
