sketch Swivel bracket twin wheel 250 mm

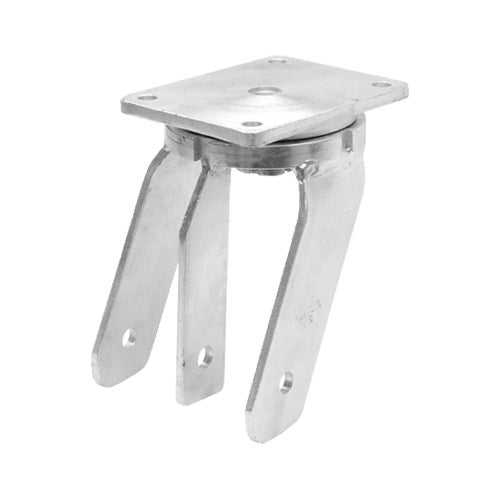

Swivel bracket twin wheel 250 mm

Article number:
6s2569
PDF Sheet

Swivel bracket made for a twin wheel setup. Welded, zinc plated castor and ball race swivel with thrust ball bearing combined alongside tapered roller bearing. Sealed and equipped with a grease nipple. Top plate fitting.

For price information, please log in.

Specifications

Diameter 250 mm
Totalt height 314 mm
Load Capacity (dynamic) 3000 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 250 mm
Totalt height 314 mm
Load Capacity (dynamic) 3000 kg
Fitting Top plate
Plate Size 175x140 mm
CC Distance 140x105 mm
Hub Hole Diameter 16 mm
Top Hole 14 mm
Fork Width 65 mm
Offset 75 mm
Material Thickness Bracket 8 mm
Materialthickplate 15 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
