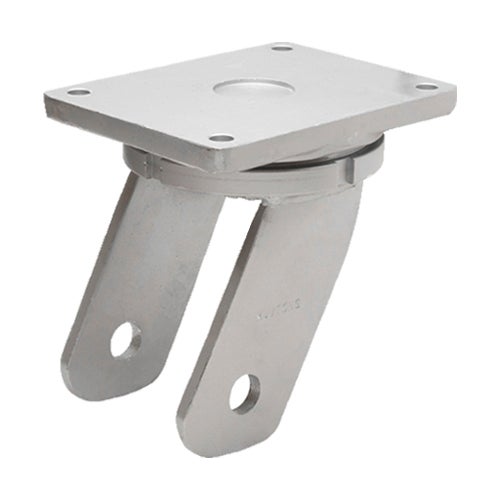

sketch Swivel bracket 300 mm

Swivel bracket 300 mm

Article number:
6q3069
PDF Sheet

Swivel bracket. Welded, zinc plated castor and ball race swivel with thrust ball bearing combined alongside tapered roller bearing. Sealed and equipped with a grease nipple. Top plate fitting.

For price information, please log in.

Specifications

Diameter 300 mm
Totalt height 395 mm
Load Capacity (dynamic) 7500 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 300 mm
Totalt height 395 mm
Load Capacity (dynamic) 7500 kg
Fitting Top plate
Plate Size 255x200 mm
CC Distance 210x160 mm
Hub Hole Diameter 30 mm
Top Hole 18 mm
Fork Width 125 mm
Offset 85 mm
Material Thickness Bracket 12.2 mm
Materialthickplate 27.5 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
