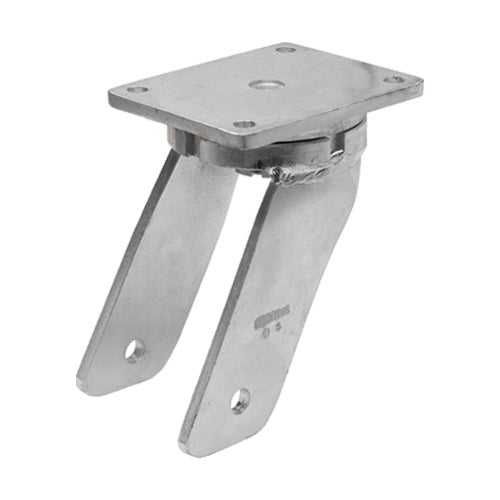

Swivel bracket 300 mm

Article number:
6l3069
PDF Sheet

Swivel bracket. Welded, zinc plated castor and ball race swivel with thrust ball bearing combined alongside tapered roller bearing. Sealed and equipped with a grease nipple. Top plate fitting.

For price information, please log in.

Specifications

Diameter 300 mm
Totalt height 365 mm
Load Capacity (dynamic) 2000 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 300 mm
Totalt height 365 mm
Load Capacity (dynamic) 2000 kg
Fitting Top plate
Plate Size 175x140 mm
CC Distance 140x105 mm
Hub Hole Diameter 16 mm
Top Hole 14 mm
Fork Width 95 mm
Offset 82 mm
Material Thickness Bracket 10 mm
Materialthickplate 11.5 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
