sketch Swivel bracket 250 mm

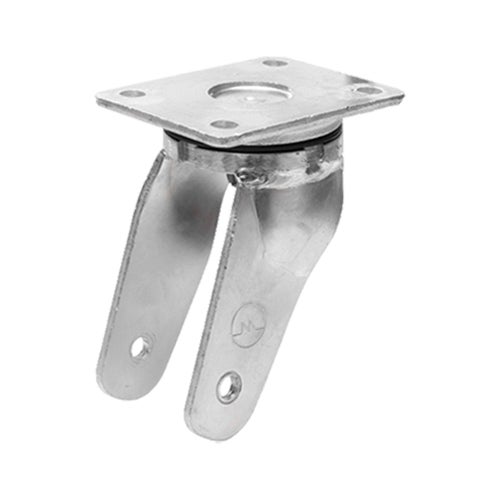

Swivel bracket 250 mm

Article number:
6j2568
PDF Sheet

Swivel bracket. Welded, zinc plated castor and ball race swivel with thrust ball bearing combined alongside tapered roller bearing. Sealed and equipped with a grease nipple. Top plate fitting.

For price information, please log in.

Specifications

Diameter 250 mm
Totalt height 300 mm
Load Capacity (dynamic) 1500 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 250 mm
Totalt height 300 mm
Load Capacity (dynamic) 1500 kg
Fitting Top plate
Plate Size 140x110 mm
CC Distance 105x80 mm
Hub Hole Diameter 14 mm
Top Hole 11 mm
Fork Width 65 mm
Info 3 Sections
Offset 73 mm
Material Thickness Bracket 6 mm
Materialthickplate 8 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
