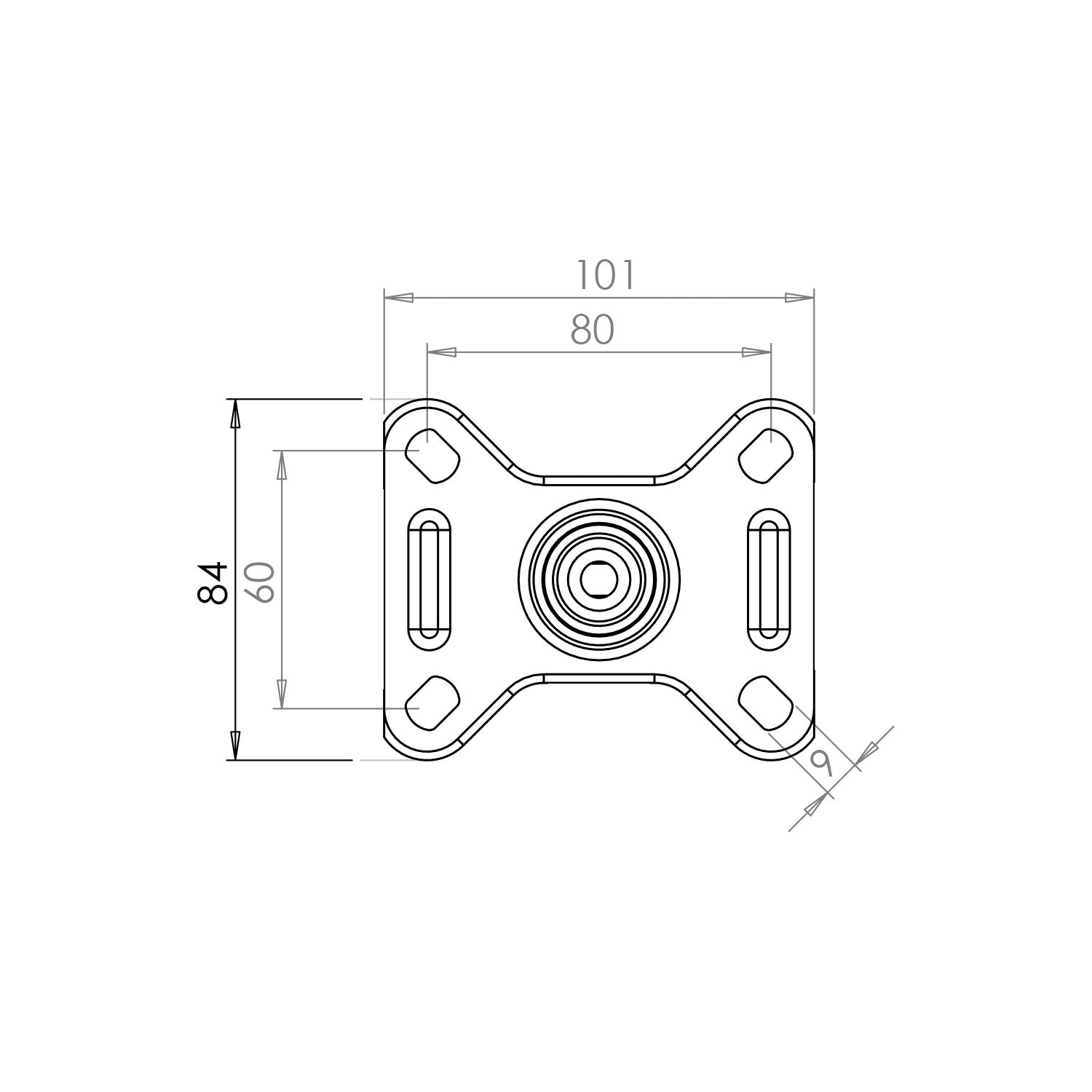

  • sketch Fixed bracket 80 mm, stainless 2

Fixed bracket 80 mm, stainless

Article number:
5y0866-rf
PDF Sheet

Fixed bracket made of pressed, stainless steel. Top plate fitting.

For price information, please log in.

Specifications

Diameter 80 mm
Totalt height 108 mm
Load Capacity (dynamic) 130 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 80 mm
Totalt height 108 mm
Load Capacity (dynamic) 130 kg
Fitting Top plate
Plate Size 105x85 mm
CC Distance 80x60 mm
Top Hole 9 mm
Fork Width 45 mm
Dyn. Load Capacity (4km/) 130 kg
Material Thickness Bracket 1.5 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
