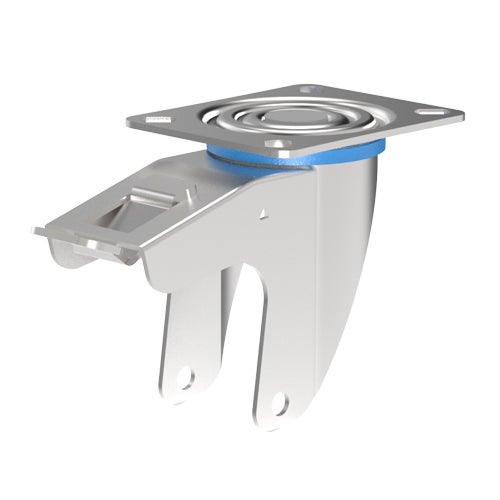

• Swivel bracket 125 mm, total stop brake, stainless 1

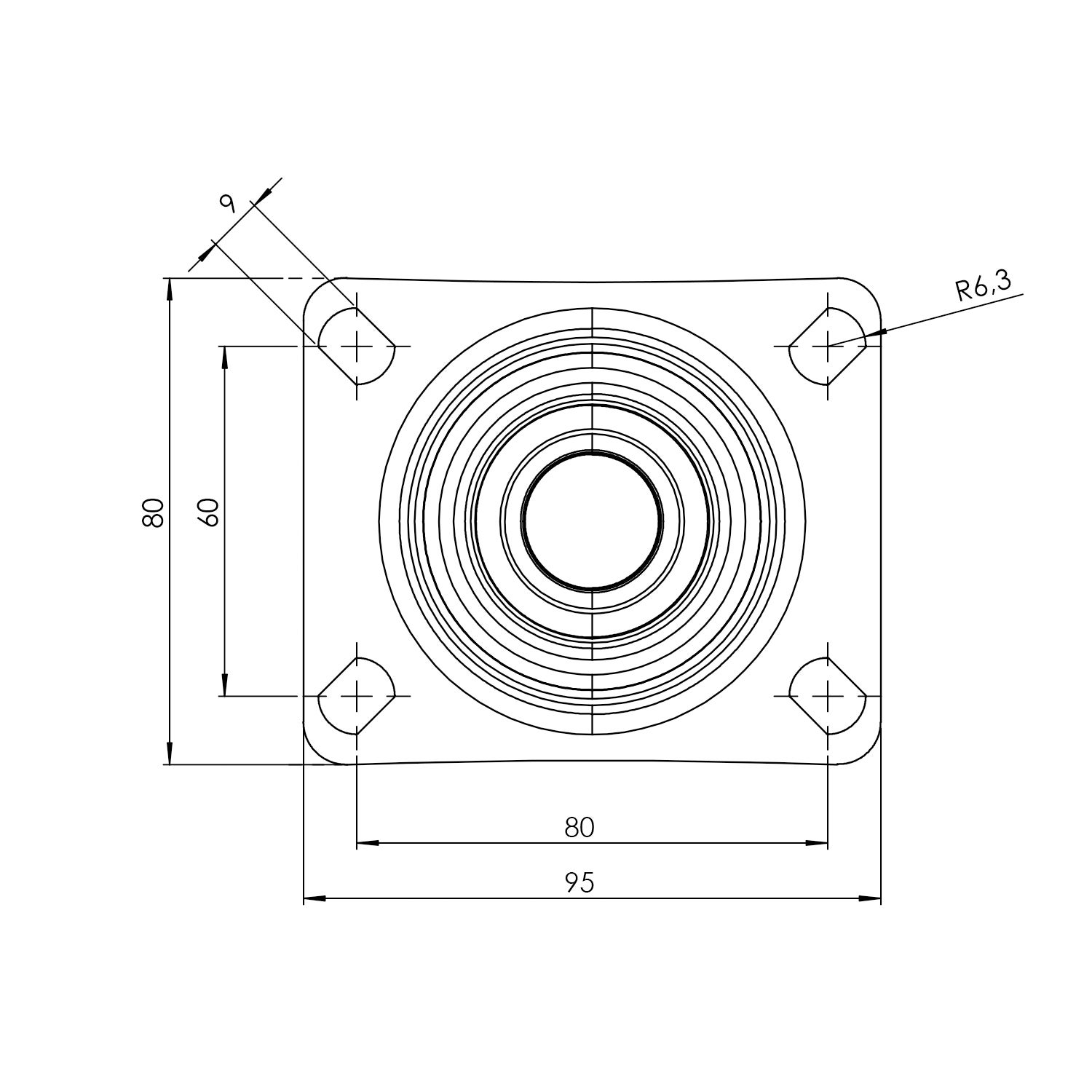

  • sketch Swivel bracket 125 mm, total stop brake, stainless 2

Swivel bracket 125 mm, total stop brake, stainless

Article number:
5x1266bt-rf
PDF Sheet

Swivel bracket with total stop brake. Pressed stainless steel with double ball race swivel. Top plate fitting.

For price information, please log in.

Specifications

Diameter 125 mm
Totalt height 155 mm
Load Capacity (dynamic) 130 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 125 mm
Totalt height 155 mm
Load Capacity (dynamic) 130 kg
Fitting Top plate
Plate Size 95x80 mm
CC Distance 80x60 mm
Brake Total brake
Top Hole 9 mm
Fork Width 45 mm
Dyn. Load Capacity (4km/) 130 kg
Offset 32 mm
Material Thickness Bracket 1.8 mm
Materialthickplate 2.5 mm
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
