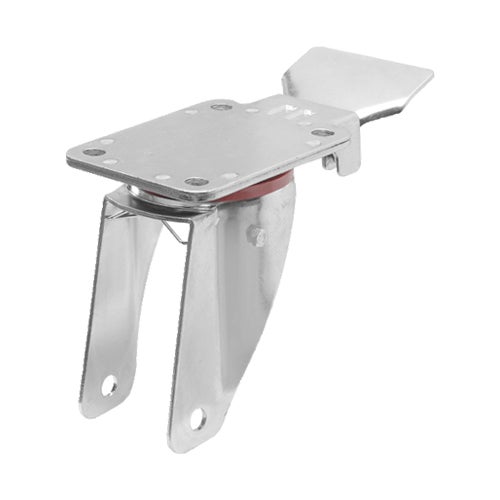

Swivel bracket 250 mm, total stop brake

Article number:
5a2068bf

Swivel bracket with total stop brake. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Fix pedal.

For price information, please log in.

Specifications

Length 150
Diameter 200
Totalt height 237
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Length 150
Diameter 200
Totalt height 237
Load Capacity (dynamic) 400
Castor model Brake
Fitting Top plate
Plate Size 140x110
CC Distance 105x80
Brake Total brake
Hub Hole Diameter 12
Top Hole 11x14
Fork Width 62
Offset 55
Material Thickness Bracket 3
Product Weight 2.03
Temperature Range -20°C to +70°C
Extended specifications
