sketch Swivel bracket 80 mm

Swivel bracket 80 mm

Article number:
5a0800
PDF Sheet

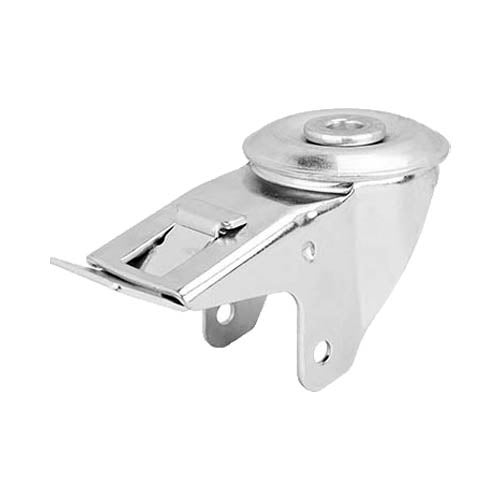

Swivel bracket. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Center hole fitting.

For price information, please log in.

Specifications

Diameter 80 mm
Totalt height 108 mm
Load Capacity (dynamic) 150 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 80 mm
Totalt height 108 mm
Load Capacity (dynamic) 150 kg
Castor model Swivel
Fitting Center hole
Centre Bolt Hole 13 mm
Hub Hole Diameter 8 mm
Diameter second/outer 75 mm
Fork Width 46 mm
Offset 41 mm
Material Thickness Bracket 2.5 mm
Product Weight 0.34 kg
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
