sketch Swivel bracket 200 mm, total brake

Swivel bracket 200 mm, total brake

Article number:
582068btf
PDF Sheet

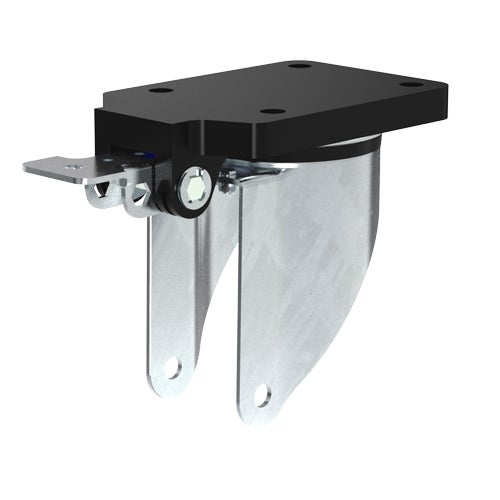

Swivel bracket with total stop brake. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Fix pedal.

For price information, please log in.

Specifications

Diameter 200 mm
Totalt height 249 mm
Load Capacity (dynamic) 400 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 200 mm
Totalt height 249 mm
Load Capacity (dynamic) 400 kg
Fitting Top plate
Plate Size 180x116 mm
CC Distance 105x80 mm
Brake Total brake
Hub Hole Diameter 12 mm
Top Hole 13 mm
Fork Width 63 mm
Offset 53 mm
Material Thickness Bracket 3 mm
Materialthickplate 14 mm
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
