• Fixed castor 160 mm, elastic convex PU-tyre 1
  • sketch Fixed castor 160 mm, elastic convex PU-tyre 2

Fixed castor 160 mm, elastic convex PU-tyre

Article number:
5b16680432pzb-alu
PDF Sheet

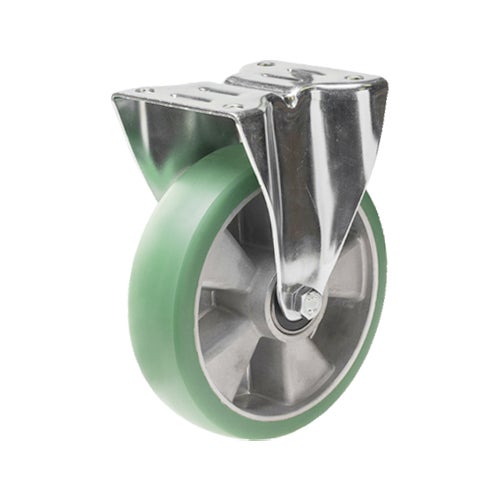

Fixed bracket made of zinc-chromatized pressed sheet metal. Top plate fitting. Wheel axle with nut. Wheel with green elastic convex PU-tyre. Hub made of aluminium. Ball bearing.

For price information, please log in.

Specifications

Diameter 160 mm
Totalt height 200 mm
Load Capacity (dynamic) 350 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 160 mm
Totalt height 200 mm
Load Capacity (dynamic) 350 kg
Castor model Fix
Fitting Top plate
Material Tread Elastic Polyurethan
Bearing Double Ball bearing

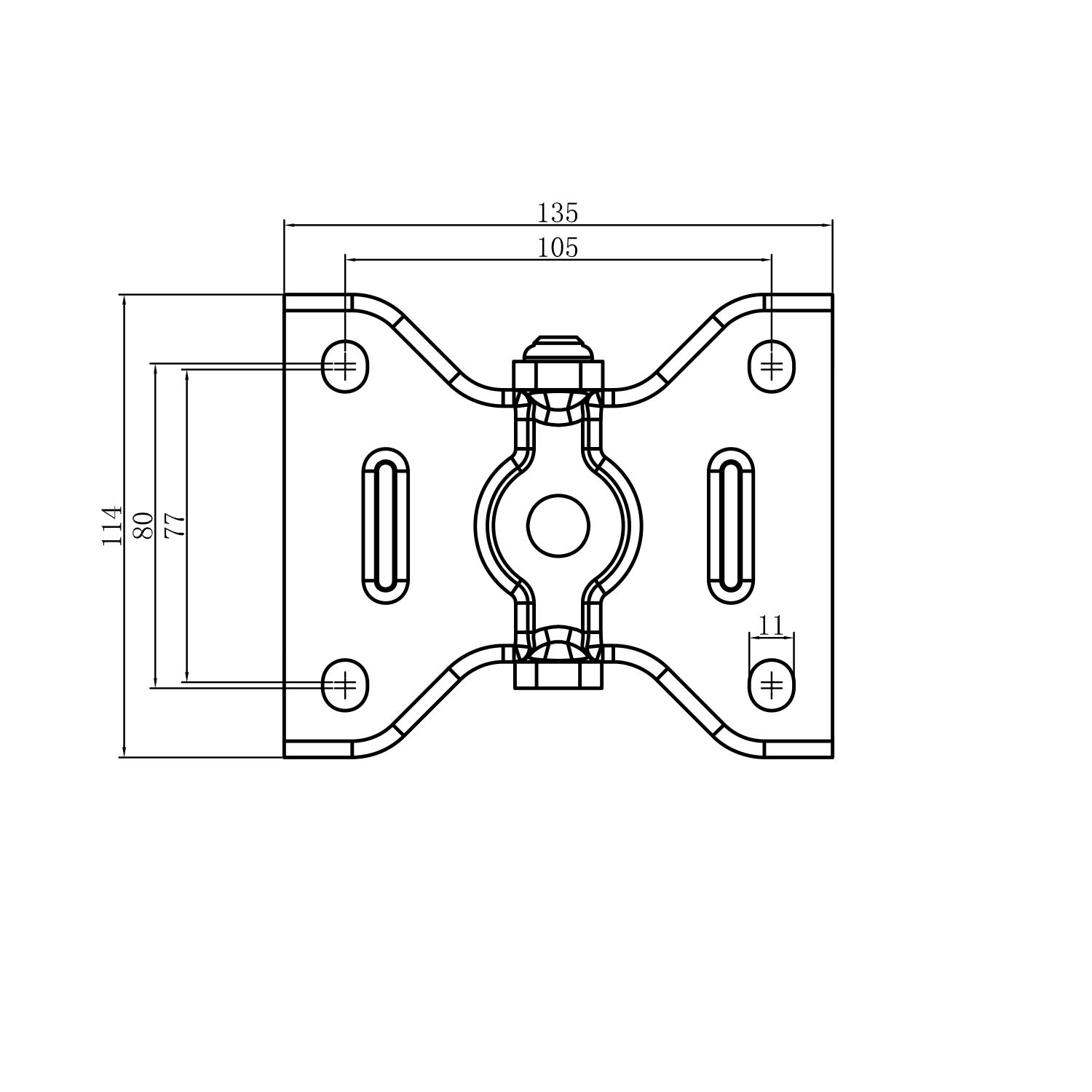

Plate Size 140x110 mm
CC Distance 105x80 mm
Thread hardness (Shore°) 83° Shore A
Width of tread 50 mm
Material Hub Aluminium
Top Hole 11 mm
Dyn. Load Capacity (4km/) 350 kg
Color Tread Green
Material Thickness Bracket 3 mm
Materialthickplate 3 mm
Product Weight 1.95 kg
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
