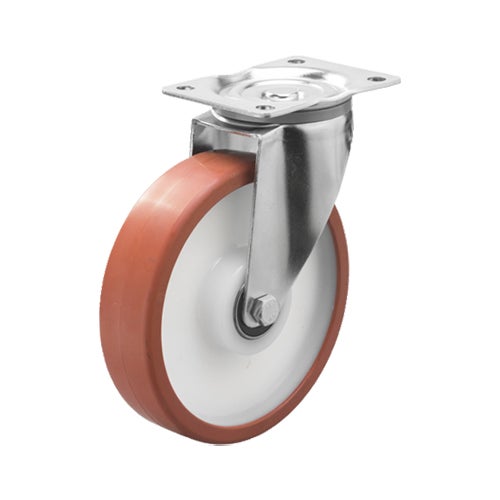

• Swivel castor 200 mm, TPU-tyre 1

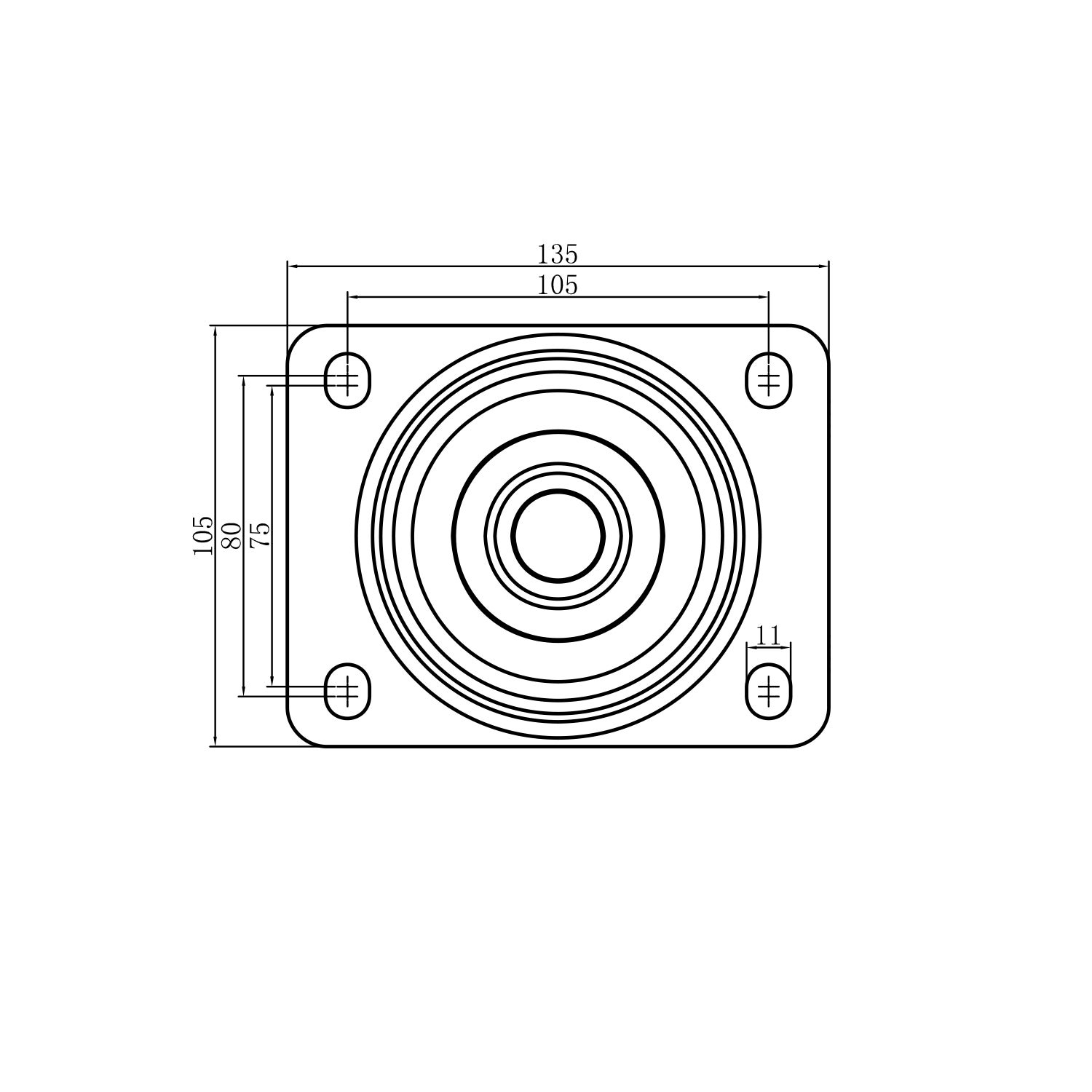

  • sketch Swivel castor 200 mm, TPU-tyre 2

Swivel castor 200 mm, TPU-tyre

Article number:
5a20680432bv-hd
PDF Sheet

Swivel bracket. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Wheel axle with nut. Wheel with red TPU-tyre. Hub made of Nylon/PA6. Double Ball bearing.

For price information, please log in.

Specifications

Diameter 200
Totalt height 240
Load Capacity (dynamic) 400
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 200
Totalt height 240
Load Capacity (dynamic) 400
Castor model Swivel
Fitting Top plate
Material Tread Polyurethane
Bearing Double Ball bearing
Plate Size 140x110
CC Distance 105x80
Thread hardness (Shore°) 98° Shore A
Width of tread 45
Hub Hole Diameter 12
Material Hub Nylon PA6
Top Hole 11
Fork Width 61
Dyn. Load Capacity (4km/) 400
Color Tread Red
Offset 54
Material Thickness Bracket 3
Materialthickplate 4
Product Weight 2.27
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
