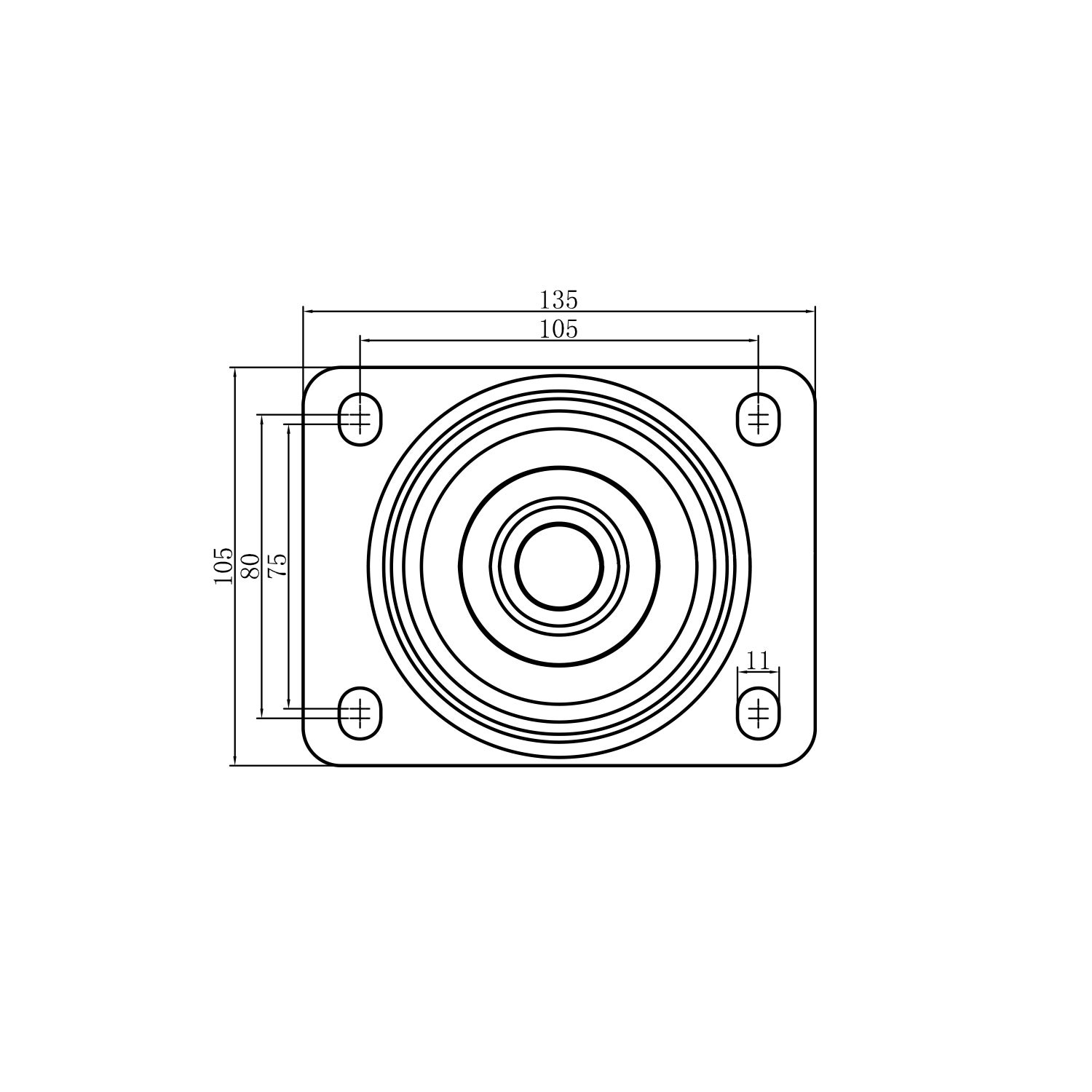

  • sketch Braked castor 160 mm, total stop brake, PA6-wheel 2

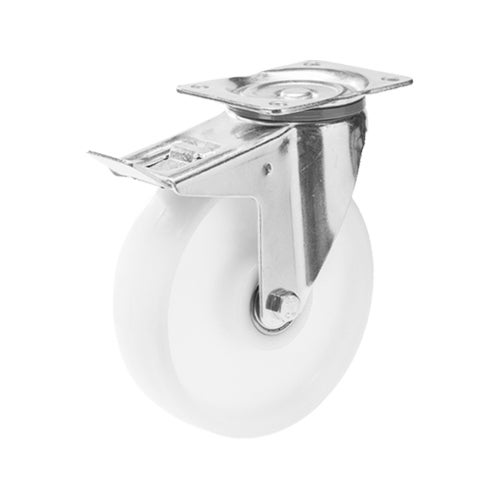

Braked castor 160 mm, total stop brake, PA6-wheel

Article number:
5a16685232n-hd
PDF Sheet

Swivel bracket with total stop brake. Made of zinc-chromatized pressed sheet metal with double ball race swivel. Top plate fitting. Wheel axle with nut. Wheel made of white Nylon/PA6. Double Ball bearing.

For price information, please log in.

Specifications

Diameter 160 mm
Totalt height 200 mm
Load Capacity (dynamic) 300 kg
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 160 mm
Totalt height 200 mm
Load Capacity (dynamic) 300 kg
Castor model Brake
Fitting Top plate
Material Tread Polyamide / Nylon PA6
Bearing Double Ball bearing
Plate Size 140x110 mm
CC Distance 105x80 mm
Thread hardness (Shore°) 83° Shore D
Brake Total brake
Width of tread 45 mm
Hub Hole Diameter 12 mm
Material Hub Nylon PA6
Top Hole 11 mm
Fork Width 61 mm
Dyn. Load Capacity (4km/) 300 kg
Color Tread White
Offset 56 mm
Material Thickness Bracket 3 mm
Materialthickplate 4 mm
Swivel radius 159 mm
Product Weight 2.38 kg
Temperature Range -20°C to +70°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
