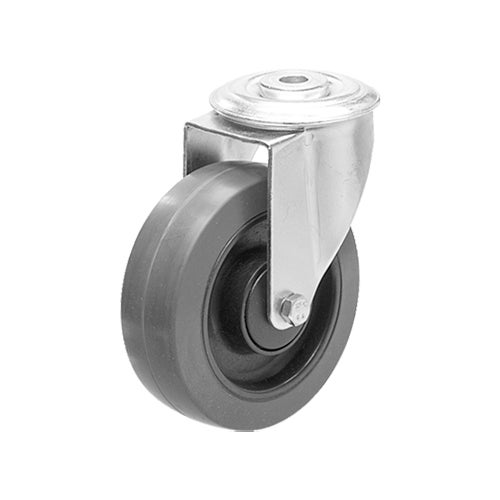

sketch Swivel castor 125 mm, grey elastic rubber-tyre, PA

Swivel castor 125 mm, grey elastic rubber-tyre, PA

Article number:
5a12000932gs
PDF Sheet

Pressed, zinc plated swivel castor. Swivel head with double ball race, assembled with a kingping. Center hole fitting. Elastic grey rubber wheel on nylon centre.

For price information, please log in.

Specifications

Diameter 125
Totalt height 155
Load Capacity (dynamic) 200
Rolling resistance 1 = Heavy to roll, 5 = Easy to roll
Sound level 1 = Loud, 5 = Quiet
Wear 1 = Quick wear, 5 = Slow wear
Rust protection 1 = Low rust protection, 5 = Stainless
Diameter 125
Totalt height 155
Load Capacity (dynamic) 200
Castor model Swivel
Fitting Center hole
Material Tread Elastic Rubber
Bearing Ball bearing
Thread hardness (Shore°) 75° Shore A
Centre Bolt Hole 13
Width of tread 36
Material Hub Nylon PA6
Dyn. Load Capacity (4km/) 180
Color Tread Grey
Offset 41
Material Thickness Bracket 2.5
Product Weight 0.93
Temperature Range -20°C to +60°C
Numeric values in the technical specification may be nominal/rounded to the nearest standard dimension. To see exact values, please refer to the drawing.
Extended specifications

Enter your details to download 3D files.

Drawing not available.

Detailed stock balance information is only available for logged in users.

Only available as a logged in user.

Only available as a logged in user.
